Chain Grate Steam Boiler

About the Product

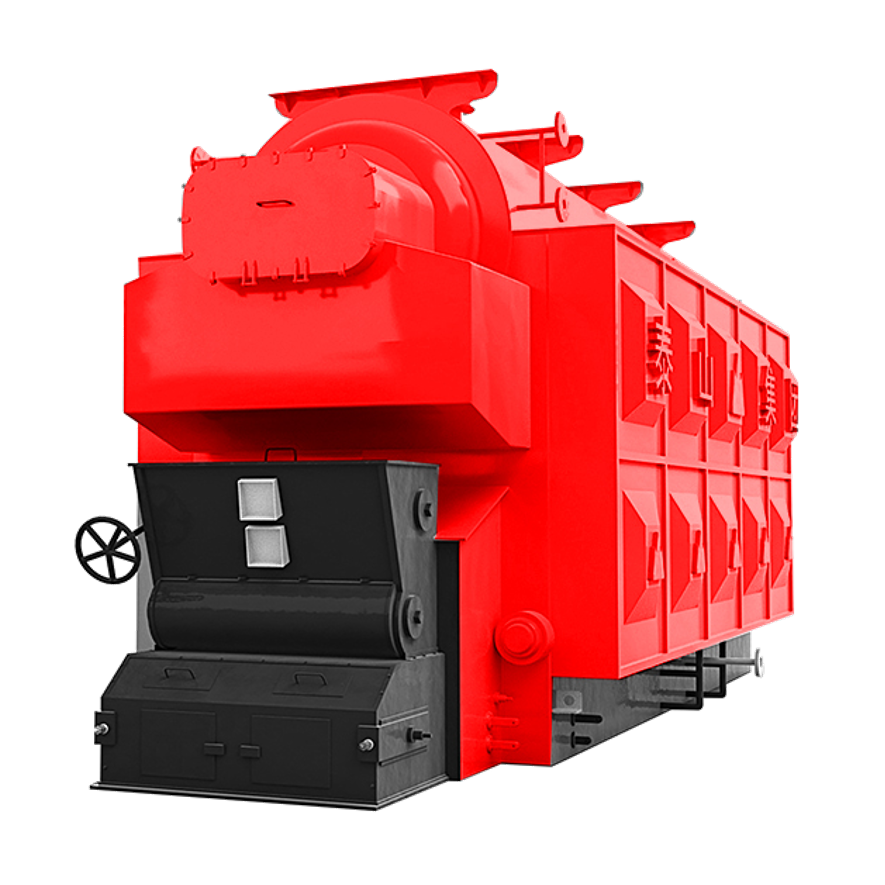

Chain Grate Steam Boiler

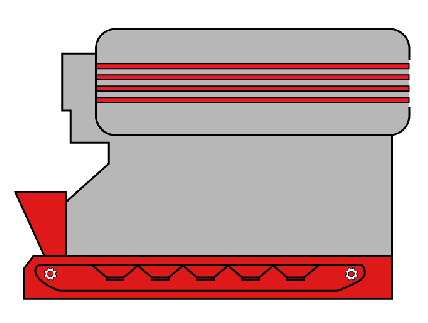

DZL With Steam Masters

FEATURES

Capacity 2 - 35 TPH

Reasonable flue gas speed

Big and tall boiler furnace can be designed according to the different fuel to improve the burning

Compact structure, small installation space, single-floor boiler room, cost-effective infra- structure.

Electric control cabinet is equipped with complete automatic control and monitor instruments

PRODUCT DESCRIPTION

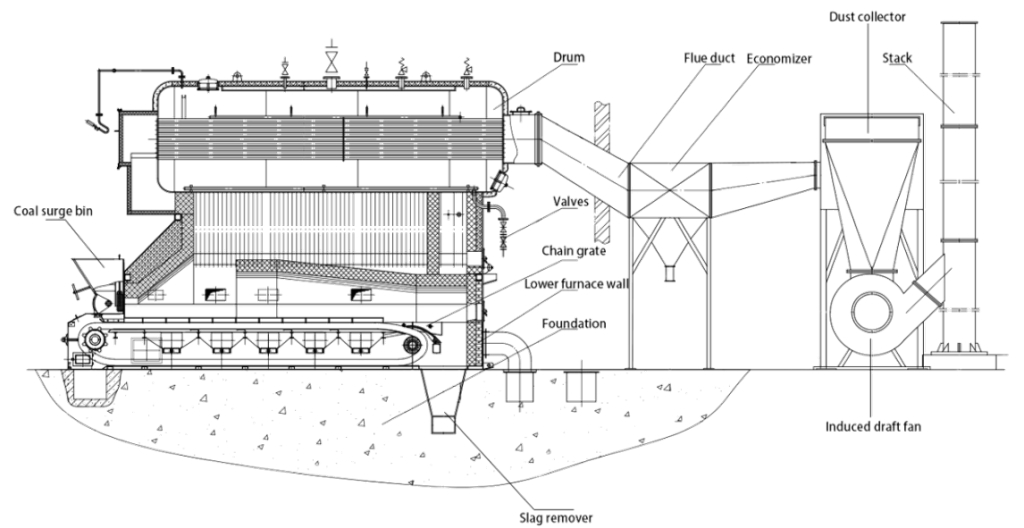

Taishan Coal Fired steam boiler is water-tube assembly, chain grate boiler. Boiler drum is arranged along the center of the boiler longitudinally. The front drum and both sides of the furnace water-wall tubes become radiant heating surface, the rear drum and the tube become convection heating surface. Coal economizer is installed at the rear of boiler. After some heat of the combustion-generated high temperature fume is absorbed by the hearth, the fume flows to the convection heating surface through burn out chamber and exhausts outside through the chimney via coal economizer, dust collector and draught fan.

TECHNICAL DETAILS

Coal Fired Steam Boiler

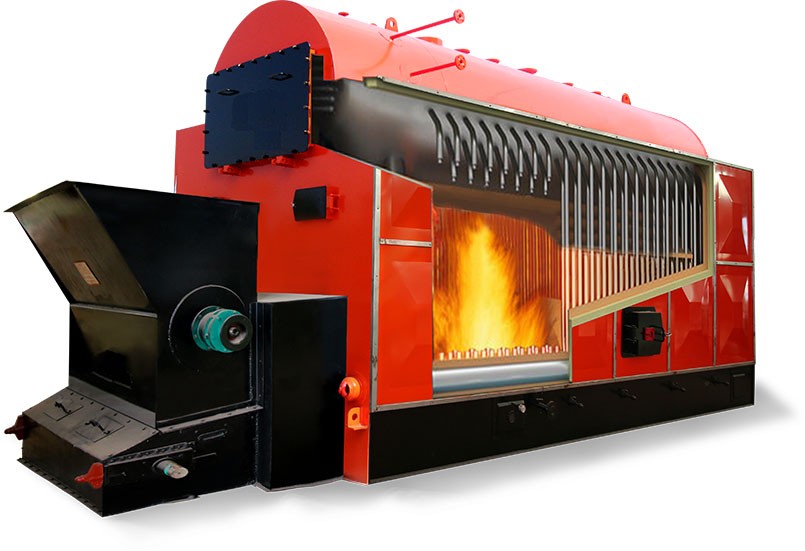

Coal Fired Steam Boiler by steam master

TABLE OF DATA

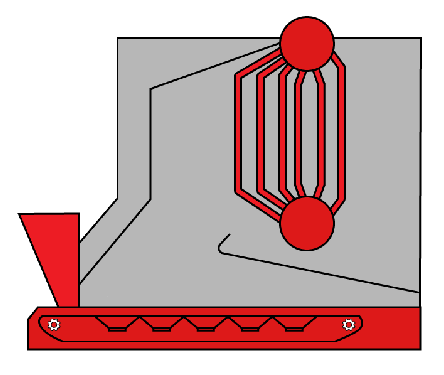

SZL series table by steam masters
