HOT WATER STORAGE HEATER

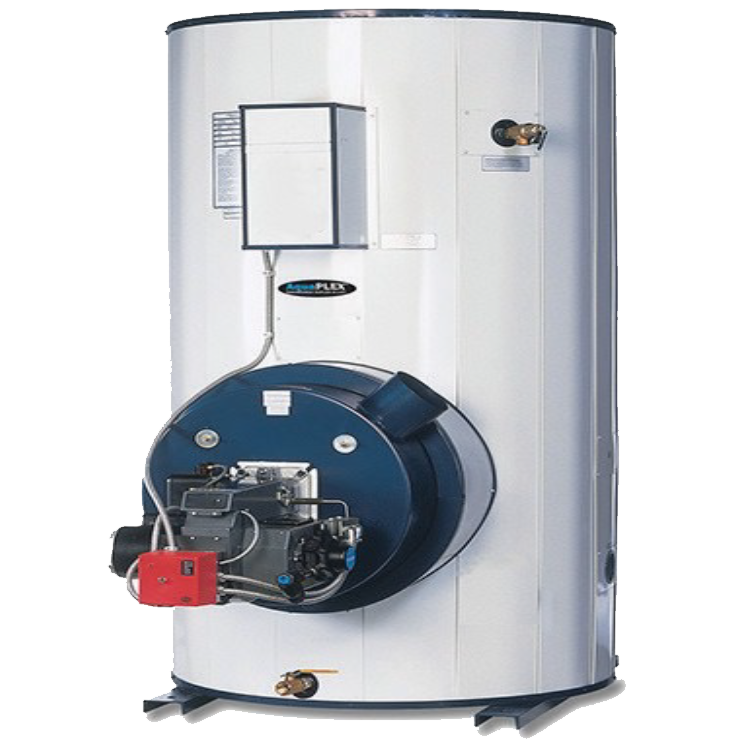

HOT WATER STORAGE HEATER by steam masters

FEATURES

Un-interruptible supply of hot water at same temperature

Compact design to install anywhere inside /outside

Corrosion protection with epoxy lining from inside

Operational thermal efficiency 86% approx

Storage ranges 250 to 5000 US Gallons

Storage vessel tested 200 PSI

Larger sizes require less space

Vertically/ horizontally configuration

DESCRIPTION

The Hot Water Storage Heater is equipped with integrated heat exchanger & forced draft burner, unique module. Fire tube and flue outlet system is mounted on a nozzle flange with storage tank. The combustion chamber and U bend type fire tube are completely submerged for maximum heat transfer & minimum losses. The module is easily removable for de-scaling, repair or replacement without disturbing other fitting. The design of the combustion chamber and fire tubes has resulted in efficiency above 86 % when fired with gas/oil. Flue gas temperature is very reduced by inserting energy extractor in each fire tube.Flue pipe diameter is also reduced substantially and properly insulation for more safety. The modified design of module is best for global use at commercial & industrial sites. The advanced fire tube system provides spiraling flue gas circulation for maximum heat transfer and operational efficiency.

STANDARD ACCESSORIES

Safety Valve

Indication lights

Power on/off switch

Lower water cut off

100% shutoff control

Main flame failure alarm

Digital temperature controller

High & Low limit thermostat

HOT WATER STORAGE HEATER diagram by steam masters

TECHNICAL DATA

HOT WATER STORAGE HEATER by steam masters
